definitions.h File Reference

Common definitions (mostly types). More...

#include <pthread.h>

Include dependency graph for definitions.h:

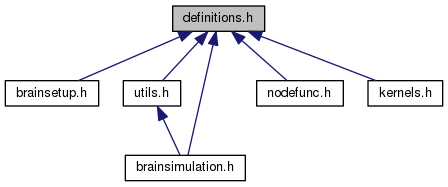

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	nodetimeseries_t
	Struct to store the results of a simulation for a single observed node. More...
struct	nodeinputseries_t
	Struct to store the input for the simulation for a single node. More...
struct	nodestate_t
	Struct to store the status of one node. More...
struct	partialsimulationcontext_t
	Struct to pass all execution information to a new thread for executing a tick (or parts thereof). More...

Macros
#define	MULTITHREADING   1
	1 if multithreading is enabled, 0 otherwise.
#define	THREADFACTOR   1
	Flouting point factor to modifiy the number of threads in relation to the number of logical processors on the execution system.
#define	D_NEIGHBORFACTOR   1
	Ratio of how much the direct neighbors influence the energy state of any node. More...
#define	ID_NEIGHBORFACTOR   1
	Ratio of how much the indirect neighbors influence the energy state of any node. More...
#define	DAMPING   0.001
	DEPRECATED. More...
#define	ENERGY_FACTOR   1
	Ratio of how much the historical energy state negatively influences the current energy slope. More...
#define	ENERGY_WEIGHT   1
	Ratio of how much the historical energy state influences the current energy state. More...
#define	DELTA_FACTOR   1
	Ratio of how much the current slope vector influences the slope calculation. More...
#define	SLOPE_FACTOR   1
	Ratio of how much the historical slope influences the current energy state. More...
#define	SLOPE_WEIGHT   1
	Ratio of how much the current calculated slope influences the current energy state. More...

Typedefs
typedef pthread_t	threadhandle_t
	Platform-independent thread handle.
typedef pthread_barrier_t	threadbarrier_t
	Platform-independent thread barrier.
typedef double	nodeval_t
	Type that the nodes in the brainsimulation use to store their energy level.
typedef int(*	kernelfunc_t) (nodeval_t *, int, int, nodeval_t **, int, int)
	Definition of the kernel-function interface.

Detailed Description

Common definitions (mostly types).

Macro Definition Documentation

#define D_NEIGHBORFACTOR   1

Ratio of how much the direct neighbors influence the energy state of any node.

This is a factor multiplied with the direct neighbor-energy. See parameter (a1) in the flowchart. Usually a number in (0,1], however numbers > 1 are possible. Default is 1.

#define DAMPING   0.001

DEPRECATED.

CURRENTLY IGNORED. The amount of physical damping applied at each simulation step for each energy level, i.e., the ratio of energy loss per simulation tick. The energy level is damped using the function: enery_level = energy_level / (1 + DAMPING). Default: 0.001.

#define DELTA_FACTOR   1

Ratio of how much the current slope vector influences the slope calculation.

This is a factor multiplied with the current slope vector. See parameter (e) in the flowchart. Usually a number in (0,1], however numbers > 1 are possible. Default is 1.

#define ENERGY_FACTOR   1

Ratio of how much the historical energy state negatively influences the current energy slope.

This is a factor multiplied with the historical energy. See parameter (b) in the flowchart. Usually a number in (0,1], however numbers > 1 are possible. Default is 1.

#define ENERGY_WEIGHT   1

Ratio of how much the historical energy state influences the current energy state.

This is a factor multiplied with the historical energy. See parameter (g) in the flowchart. Usually a number in (0,1], however numbers > 1 are possible. Default is 1.

#define ID_NEIGHBORFACTOR   1

Ratio of how much the indirect neighbors influence the energy state of any node.

This is a factor multiplied with the indirect neighbor-energy. See parameter (a2) in the flowchart. Usually a number in (0,1], however numbers

1 are possible. Default is 1.

#define SLOPE_FACTOR   1

Ratio of how much the historical slope influences the current energy state.

This is a factor multiplied with the historical slope. See parameter (d) in the flowchart. Usually a number in (0,1], however numbers > 1 are possible. Default is 1.

#define SLOPE_WEIGHT   1

Ratio of how much the current calculated slope influences the current energy state.

This is a factor multiplied with the slope. See parameter (h) in the flowchart. Usually a number in (0,1], however numbers > 1 are possible. Default is 1.
